Bridge systems
Four families. One standard.
Every family is engineered to the appropriate standard for its use and welded by AWS-certified welders. Start from the crossing you have: the span, the bank, and what has to drive over it.
The families
-

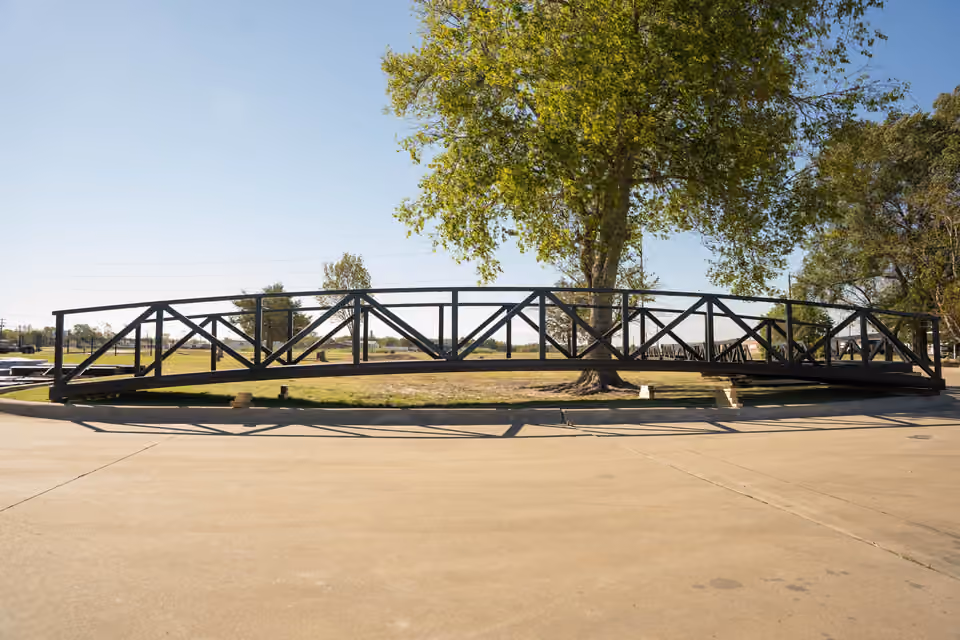

Pedestrian Bridges
90 PSFLong-span crossings for parks, greenways, resorts, and campuses.
- Span
- 40 to 72 ft
- Width
- 8 and 10 ft
-
Trail Bridges
60 PSFNarrow, light, and disappears into the landscape.
- Span
- 16 to 36 ft
- Width
- 4 and 8 ft
-
Utility Bridges
16,000 lb8-ton vehicular spans, delivered assembled and set on prepared abutments.
- Span
- 20 to 72 ft
- Width
- 8 and 10 ft
-
Bridge Kits
8,000 lbShips flat. Bolts together on site. No crane.
- Span
- 20 to 30 ft
- Width
- 8 and 10 ft
-
Cowboy Bridges
8,000 lbBuilt to cross. Finished by time.
- Span
- 20 ft
- Width
- 8 and 10 ft
Side by side
The whole line on one screen
| Family | Span | Width | Rating | Published | From |
|---|---|---|---|---|---|
| Pedestrian Bridges | 40 to 72 ft | 8 and 10 ft | 90 PSF | 9 models | $42,650 |
| Trail Bridges | 16 to 36 ft | 4 and 8 ft | 60 PSF | 4 models | $18,950 |
| Utility Bridges | 20 to 72 ft | 8 and 10 ft | 16,000 lb | 21 models | $20,750 |
| Bridge Kits | 20 to 30 ft | 8 and 10 ft | 8,000 lb | 8 models | $5,950 |
| Cowboy Bridges | 20 ft | 8 and 10 ft | 8,000 lb | 8 models | $5,500 |
Ratings apply to the cataloged configuration. What your crossing will carry depends on the engineered configuration for your site, which is settled during design rather than selected from a table.
