Long-span crossings for parks, greenways, resorts, and campuses.
Nine models from 40 to 72 feet, in 8 and 10 foot widths, rated 90 PSF and engineered to the AASHTO LRFD Guide Specifications for the Design of Pedestrian Bridges. ADA-oriented horizontal railing is available.
Or call 903-224-9262 and describe the crossing.
- Span
- 40 to 72 ft
- Width
- 8 and 10 ft
- Rating
- 90 PSF
- Models
- 9
- From
- $42,650
7 of 9 models priced. Base bridge only, excluding freight and taxes. Not a quote. Freight is quoted per delivery and depends on the route and what can reach the site. Get a price for your configuration
- Model shown
- Utility Truss, 8 ft x 40 ft, 42 in truss
- Span
- 40 ft
- Deck width
- 8 ft
- Truss depth
- 42 in
- Finish shown
- Powder coat black

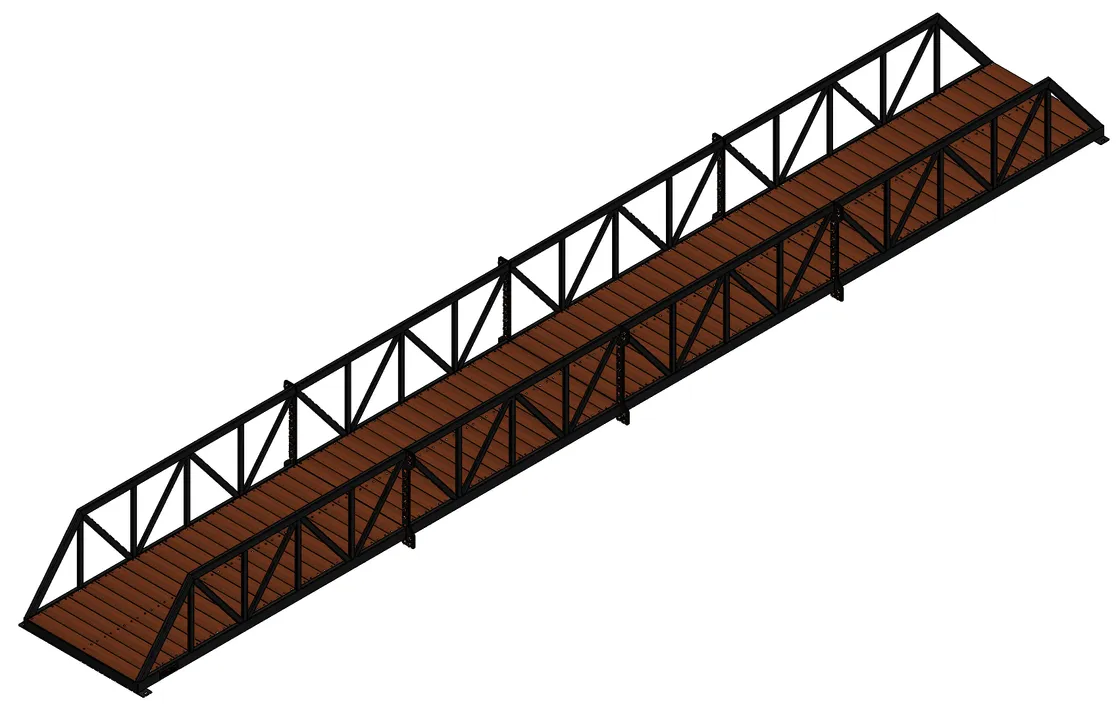

Still image of the utility truss, 8 ft x 40 ft, 42 in truss.
-
1 Side truss
The same truss geometry as the Utility family, in heavier wall. Truss depth scales with span, from 42 inches up to 63 at 72 feet.
-
2 ADA-oriented railing

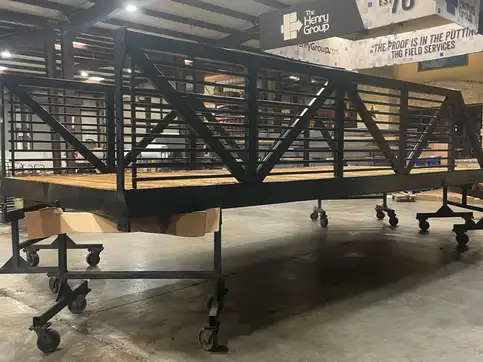

Horizontal railing is available where the crossing has to meet accessibility requirements. Standard steel railing is included.
-
3 Bearing end
Set on prepared abutments. Because these are designed to AASHTO LRFD guide specifications and stamped for the jurisdiction, the abutment is part of the engineering package.
Long-span pedestrian bridges for parks and campuses
Long-span prefabricated pedestrian bridges for parks, greenways, resorts, and campuses. Nine models cover 40 to 72 feet in 8 and 10 foot widths.
These are the models most likely to go through a public plan review, so they are engineered to the AASHTO LRFD Guide Specifications for the Design of Pedestrian Bridges and stamped for the project jurisdiction.
If you are still working out the width and the span, planning a pedestrian crossing walks through the decisions in the order a design needs them.
What 90 PSF means
90 PSF uniform live load. That is a distributed pedestrian loading, which is the right way to rate a walking surface and a different measure from the ton rating on the vehicular families. If maintenance vehicles need to cross, that is a different conversation and probably a different family.
Which railing is standard
Standard steel railing is included. ADA-oriented horizontal railing is available as an option.
What you are looking at
The interactive model on this page is the Utility Truss. That is deliberate and it is not a stand-in: the two families share a geometry. What separates them is the wall thickness of the tubing, which does not show at any angle, and the railing, which does.

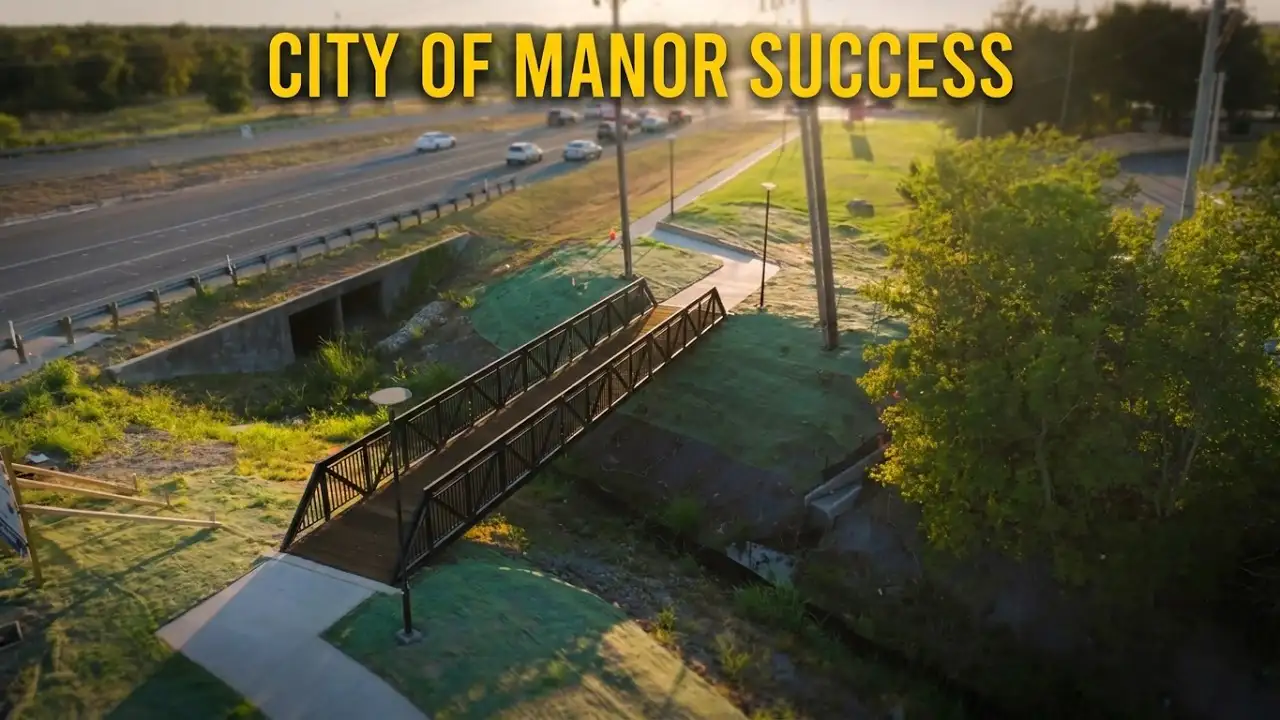

Foot traffic, parks and public crossings
The crossings this family is built for. Anything heavier, longer, or less ordinary than these is an engineering conversation rather than a catalog choice.
- Foot traffic
- Parks and trails
- Municipal and public crossings
Key specifications
| Span | 40 to 72 ft |
|---|---|
| Widths | 8 and 10 ft |
| Load rating | 90 PSFAll 9 cataloged Pedestrian models, 8 ft and 10 ft widths, 40 to 72 ft spans, 3 in x 12 in treated timber deck |
| Truss depth | 42 to 63 in |
| Models | 9 |
| Standard finish | Powder coat black |
| Standard deck | 3" x 12" treated timber |
| Design basis | AASHTO LRFD Guide Specifications for the Design of Pedestrian Bridges |
| Design life | 65 years |
| Origin | Made in USA |
| Engineering review | Before orderEvery crossing is reviewed for its site before it is quoted. |
What it carries
-
90 PSF
Engineered
- Configuration this applies to
- All 9 cataloged Pedestrian models, 8 ft and 10 ft widths, 40 to 72 ft spans, 3 in x 12 in treated timber deck
A uniform distributed pedestrian load, not a point capacity. Engineered to the AASHTO LRFD Guide Specifications for the Design of Pedestrian Bridges.
A rating is not an engineering approval
- Published ratings apply to the cataloged configuration, in the deck and rail it was engineered with.
- What your crossing will carry depends on the engineered configuration for your site, which is settled during design.
- Nothing on this page, and nothing the configurator produces, is an engineering approval for a specific site.
Available sizes
Every model in the family. A crossing that falls between two of them, or outside the range entirely, is a quote rather than a catalog number.

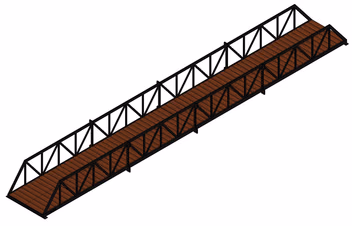

Renders are drawn per model and are not to a common scale. The table carries the dimensions.
| Model | Width | Span | Truss | Rating |
|---|---|---|---|---|
| 8 ft | 40 ft | 42 in | 90 PSF | |
| 8 ft | 48 ft | 48 in | 90 PSF | |
| 8 ft | 56 ft | 54 in | 90 PSF | |
| 8 ft | 64 ft | 58 in | 90 PSF | |
| 8 ft | 72 ft | 60 in | 90 PSF | |
| 10 ft | 40 ft | 50 in | 90 PSF | |
| 10 ft | 48 ft | 54 in | 90 PSF | |
| 10 ft | 56 ft | 60 in | 90 PSF | |
| 10 ft | 64 ft | 63 in | 90 PSF |
